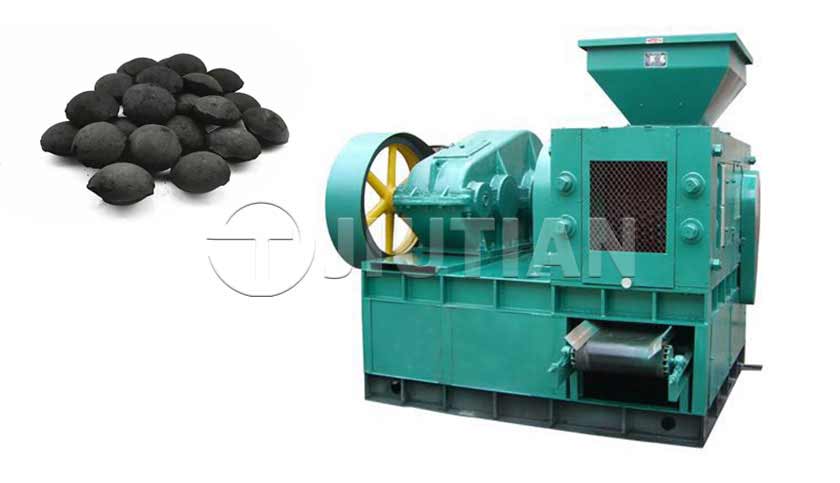

A charcoal ball press machine is mechanical equipment that presses powdered materials into different shapes, such as round, heart-shaped, pillow, square and spherical. Compacting powder substances can reduce dust, make waste utilization and improve transport characteristics. widely use for producing bricks from coal powder or biomass charcoal powder.
widely use for producing bricks from coal powder or biomass charcoal powder.

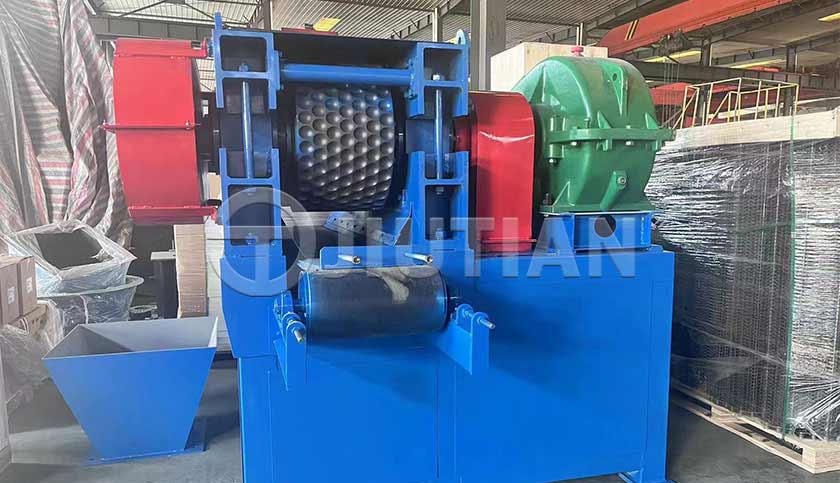

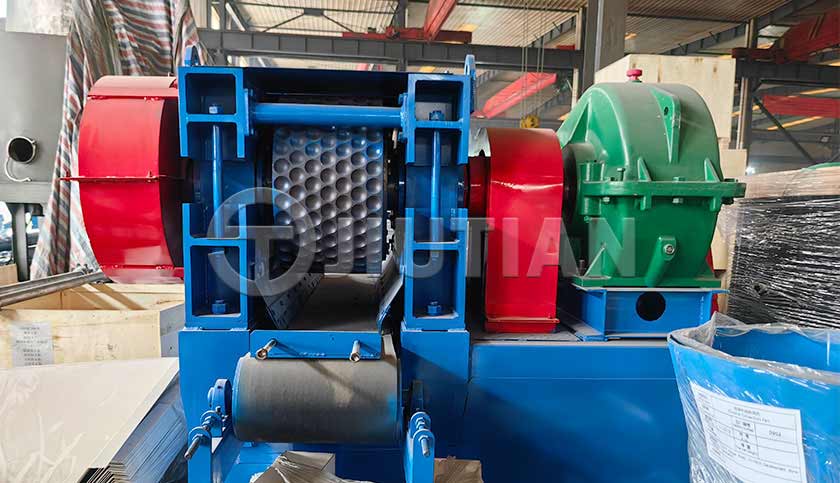

Charcoal ball press machine is a tool for producing bricks from coal powder or biomass charcoal powder. It can produce powder briquettes in various shapes, such as pillow, bread, spherical, etc. And these finished products are widely used in metallurgy, power plants, kilns, heating, catering, and other industries. Therefore, its market is very large. The output of coal powder briquetting machine is 5-10t per hour. So, it can meet the production demand of various large-scale factories.
Charcoal ball press machines are widely used. The raw materials can be coal powder, iron powder, carbon powder, aluminum powder, gypsum, and so on. In addition, waste materials such as iron filings, slag, tailings, sludge, and kaolin may be used. The fineness of these raw materials should be less than 5mm. Raw materials of charcoal powder forming machines such as coal powder and charcoal powder need to be pretreated with a binder.
| Model | Roller size(mm) | Spindle speed(r/min) | Power(kw) | Capacity(t/h) | Dimension(m) |
|---|---|---|---|---|---|
| JT-BP290 | 290*200 | 12-15 | 5.5-7.5 | 1-3 | 1.6*1.2*1.4 |
| JT-BP360 | 360*250 | 12-15 | 7.5-11 | 3-5 | 2.1*1.3*1.76 |
| JT-BP430 | 430*250 | 12-15 | 15-18.5 | 4-7 | 2.3*1.53*1.9 |
| JT-BP500 | 500*300 | 12-15 | 22-30 | 5-10 | 2.6*1.75*2.1 |
| JT-BP650 | 650*350 | 10-13 | 37-55 | 8-13 | 3.42*2*2.2 |
| JT-BP750 | 750*380 | 10-13 | 45-75 | 12-17 | 3.7*2.55*2.6 |
| JT-BP850 | 850*460 | 10-13 | 75-110 | 15-20 | 3.9*2.6*2.7 |
| JT-BP1000 | 1000*530 | 10-13 | 110-132 | 20-30 | 4*2.8*2.8 |
Capacity: 300kg/h
Location: Korea
Configuration: as biochar
Capacity: 2.5 t/h
Location: Russia
Configuration: Recycled Aluminum
Capacity: 500 kg/h
Location: Ethiopia
Configuration: as BBQ charcoal
According to the customer's actual requirements, raw materials and use of customized solutions
Own production base, strict production standards and processes, professional quality control.
Engineers track the entire service, install and commissioning the equipment to ensure successful operation.
Provide technical support, technical service, technical training, after-sales service.
