High humidity materials forming experts Zhengzhou Jiutian company according to the market demand, company targeted development of material pellet fuel production line equipment, this production line applicable to the wood chips, sawdust, bamboo shavings, wood shavings, barley straw, oat straw, wheat straw, rye, straw, rice straw, sorghum straw, corn stalks, stem drying potato vines, beans, peanut vine and other material of moisture content is 35-65%.
Biomass Sawdust rotary dryer is widely used for the drying of straw briquette, charcoal, wood pellet fuel, sawdust briquette, corn straw, soybean straw, cotton stalk, wheat straw, sorghum stalk, wood shavings, sawdust, ginkgo leaf, mulberry leaves, and other fiber materials.

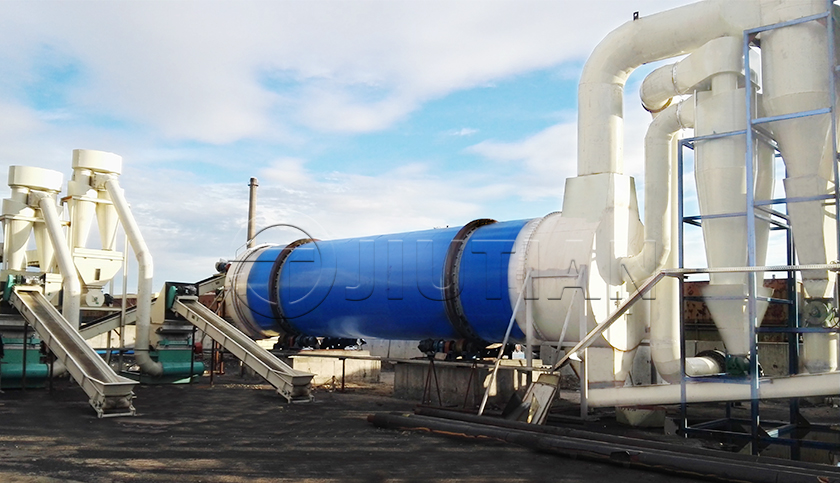

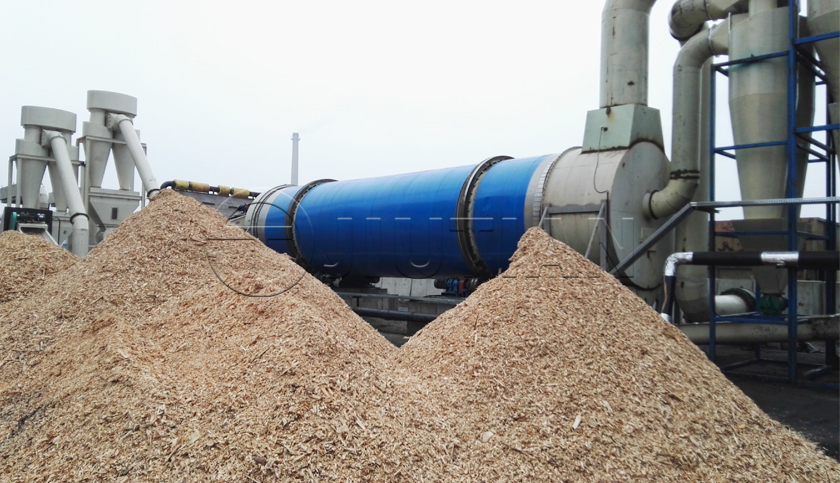

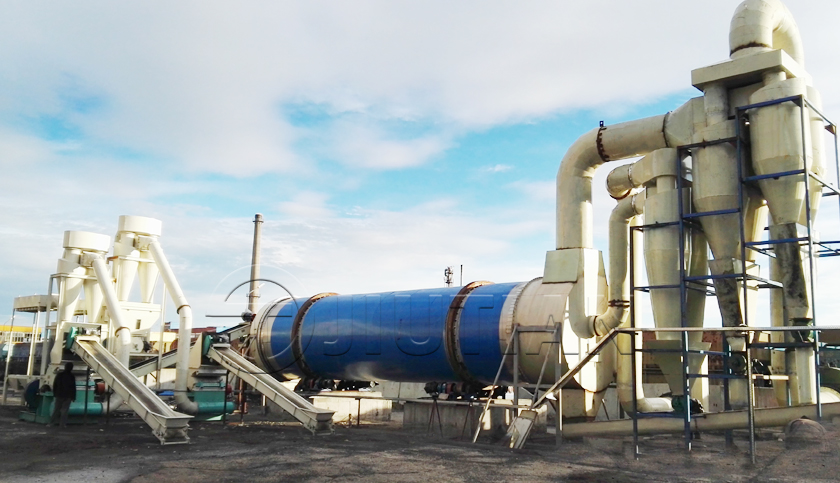

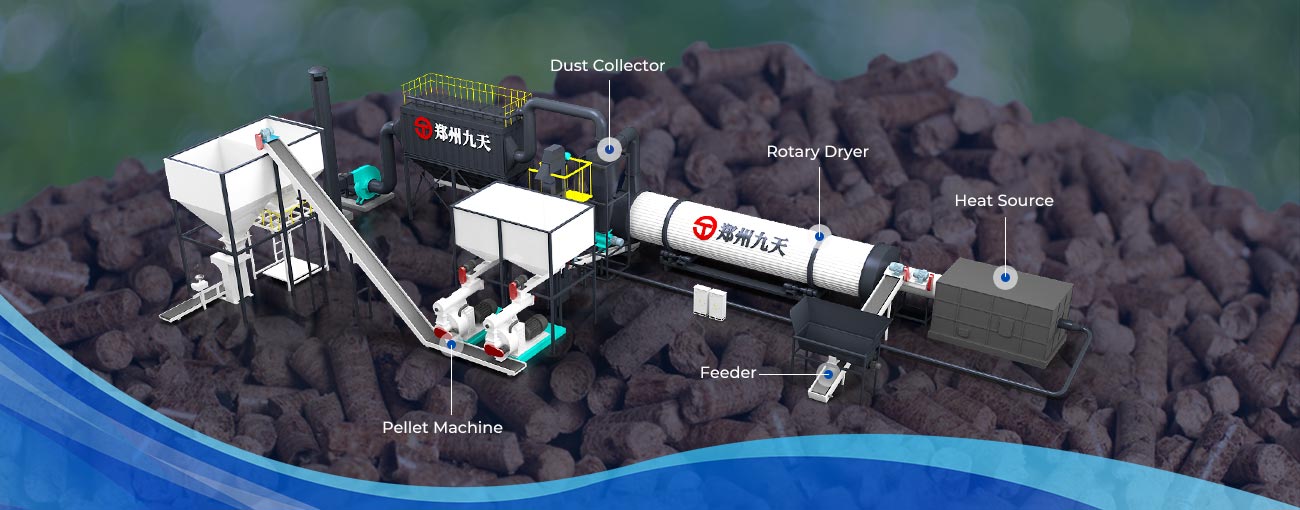

The biomass sawdust rotary dryer mainly consists of a heating device, feeding device, conveying device, discharging device, dust removal device, and other connecting components. During installation, the rotary drum dryer should be kept slightly tilted, with the discharge end slightly lower than the feed end, to allow gravity to transport the material through the dryer. After the material enters the rotary drum, as the drum rotates, a series of internal lifting plates attached to the inner wall of the drum lift the material upwards. When the material is lifted to a certain height and rolls off the lifting plates, it falls back to the bottom of the drum; during this descent, the material flows through the hot airflow, thus achieving the drying effect. The sawdust is thoroughly dried inside the rotary drum and undergoes another separation process before entering the subsequent conveying pipeline for further drying. The baffle device effectively prevents impurities from entering the conveying pipeline, thereby ensuring the high quality of the dried sawdust.
| Model | Input Capacity（t/h） | Water Evaporation (t/h) | Initial Moisture (%) | Final Moisture(%) | Drying Temperature(℃) | Power (kw) | Floor Space (m²) |
| JTSG2010/3 | 4 | 1.4 | 45±5 | 12-15% (Adjustable) | 350±50℃ | 78 | 8m×18m |
| JTSG2210/3 | 4.8 | 1.7 | 85 | 8m×18m | |||
| JTSG2510/3 | 6.2 | 2.2 | 110 | 10m×18m | |||
| JTSG2512/3 | 7.1 | 2.5 | 125 | 10m×22m | |||
| JTSG2912/3 | 9.6 | 3.4 | 135 | 10m×25m |
Capacity: 10t/day
Location: Philippine
Configuration: as coconut shell charcoal
Capacity: 1.4-1.7t/h
Location: Thailand
Configuration: as biochar
Capacity: 1t/h
Location: Kenya
Configuration: as biochar
According to the customer's actual requirements, raw materials and use of customized solutions
Own production base, strict production standards and processes, professional quality control.
Engineers track the entire service, install and commissioning the equipment to ensure successful operation.
Provide technical support, technical service, technical training, after-sales service.
