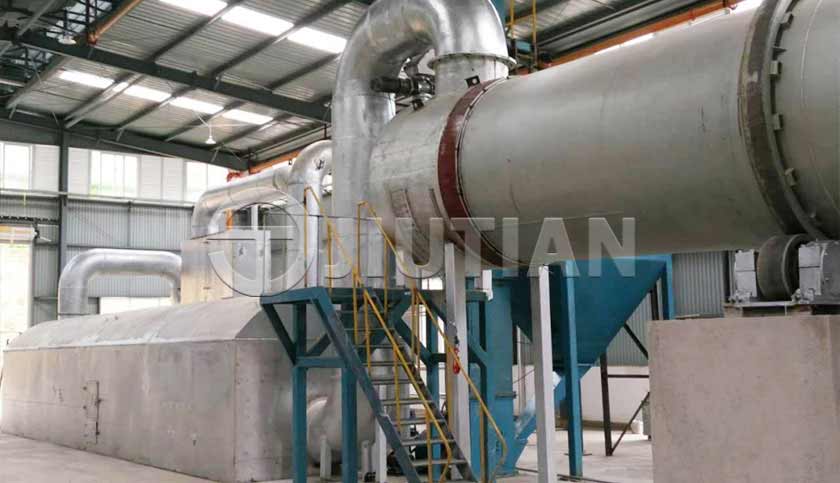

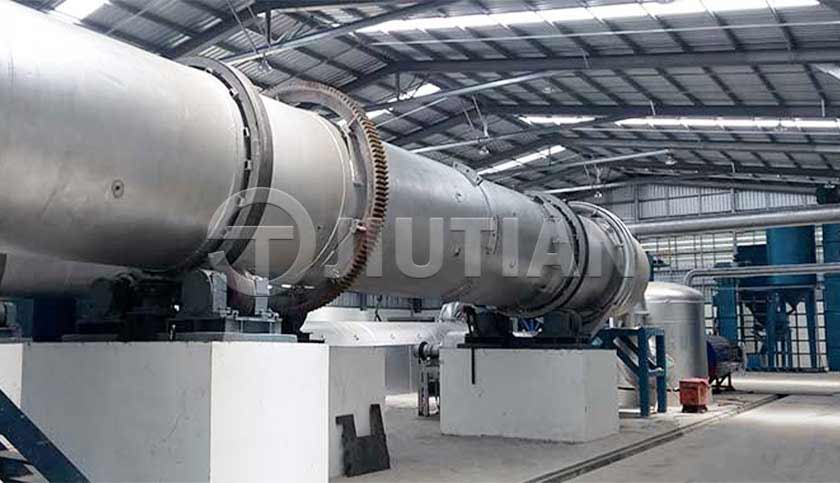

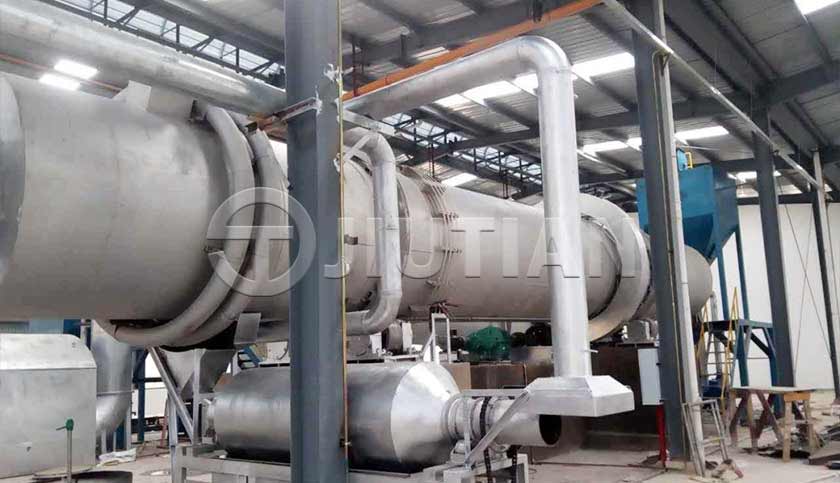

The activation furnace is a continuous equipment used to produce high-quality activated carbon by physical activation of carbon raw materials. Widely used in the activation of charcoal (from sawdust, coconut shells, hazelnut shells, nut shells, fruit shells) and coal-based carbon. It uses steam as the activation medium. In a high temperature environment, the steam can fully contact the carbon raw material to be activated. The final product activated carbon produced by the activation furnace has good indicators and can be widely used in water purification and other industries.

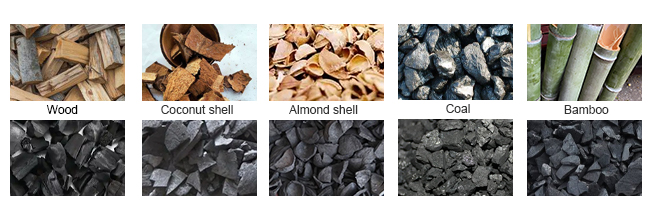

Coal-based raw materials,Wood-based raw materials,Coconut shell/fruit shell raw materials,Bamboo-based raw materials,Straw-based raw materials,etc.

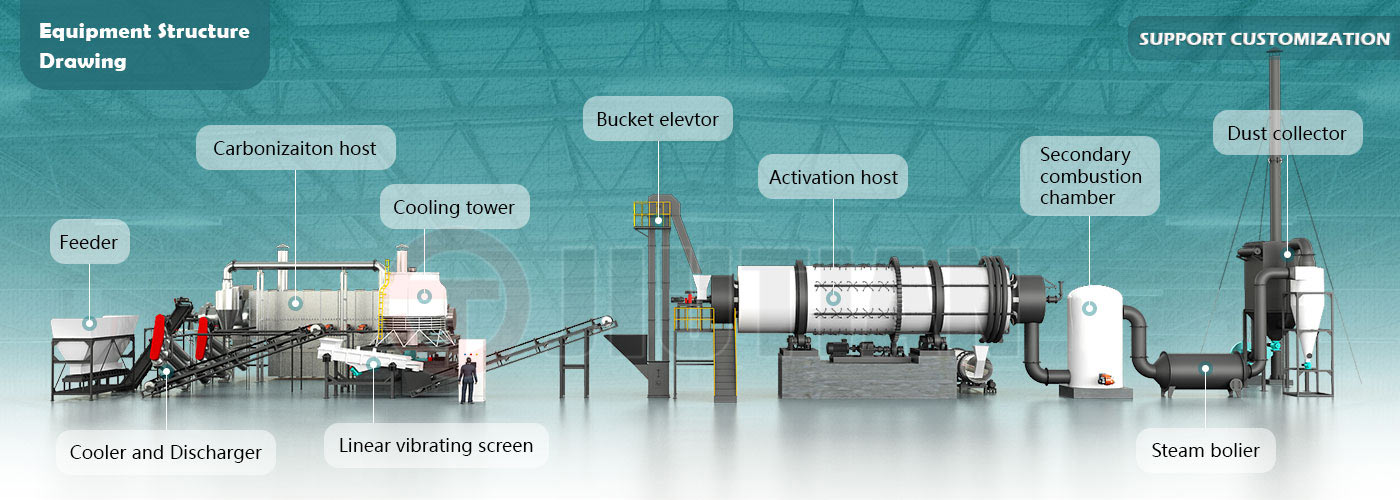

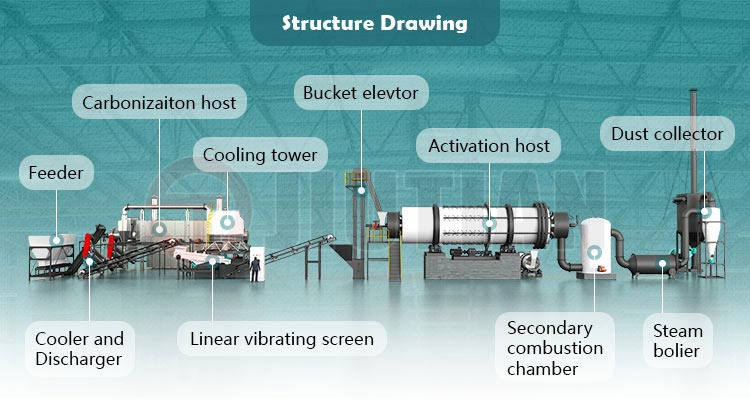

The overall production line reflects the general principles of advanced, efficient, stable, energy-saving, environmentally friendly, safe, frugal and reasonable.The main equipment uses matching drum carbonization machine, drum activation machine and feeding device, conveying device, combustible gas purification device, cooling carbonization device, PLC control system to form the layout of the carbonization activation production line.
Carbonization production line includes silo, conveying equipment, carbonization host, combustible gas purification equipment, dust removal equipment and cooling carbonization equipment.
Activation production line includes screening equipment, conveying equipment, activation host, waste gas treatment and recovery system, dust removal system and PLC control system.
| Raw Material | Iodine Adsorption Value(mg/g) | Methylene Blue Adsorption Value(mg/g) | Moisture(%) | Strength(%) | Output Ratio | Output Capacity(t/24h) |
| Coconut Shell Carbon | ＞1000 | ＞9.5 | ＜3 | ＞98 | 2.1:1 | 3-5t |
| Apricot Shell Carbon | ＞1000 | ＞10 | ＜3 | ＞96 | 2.3:1 | 2.6-4t |
| Wood Carbon | ＞1000 | ＞12 | ＜3 | ＞95 | 3:1 | 2.2-4t |
| Coal Carbon | ＞800/1000 | ＞8 | ＜3 | ＞94 | 2.8：1 | 3-6t |
Capacity: 300kg/h
Location: Korea
Configuration: as biochar
Capacity: 2.5 t/h
Location: Russia
Configuration: Recycled Aluminum
Capacity: 500 kg/h
Location: Ethiopia
Configuration: as BBQ charcoal
According to the customer's actual requirements, raw materials and use of customized solutions
Own production base, strict production standards and processes, professional quality control.
Engineers track the entire service, install and commissioning the equipment to ensure successful operation.
Provide technical support, technical service, technical training, after-sales service.
