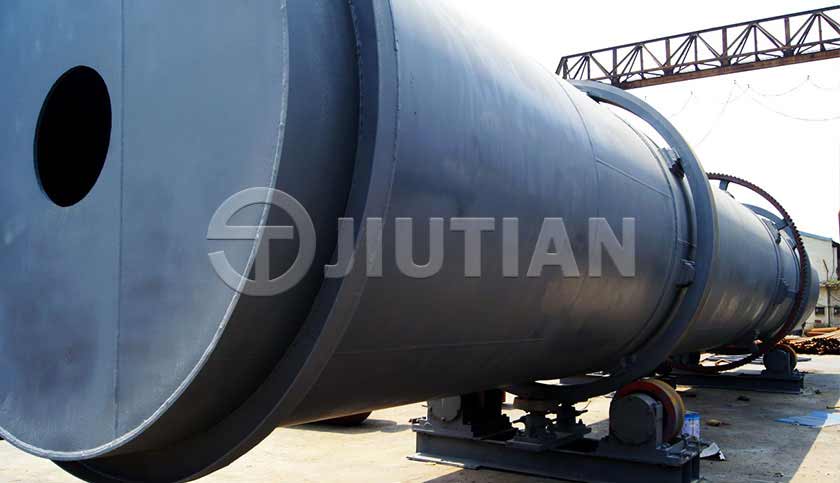

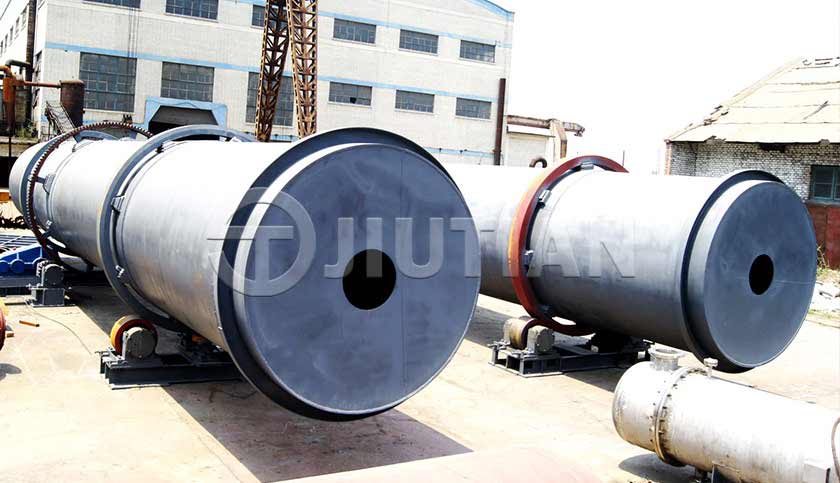

Jiutian smokeless activated carbon continuous carbonization furnace is a new type of high-efficiency, energy-saving and environmentally friendly carbonization equipment. It can be applied to a variety of materials, and one machine can be used for multiple purposes. Activated carbon carbonization furnace (carbonization machine) is a device that decomposes coconut shell by heat to produce high carbon content materials under the condition of isolating air or introducing trace gas.
Coal-based raw materials,Wood-based raw materials,Coconut shell/fruit shell raw materials,Bamboo-based raw materials,Straw-based raw materials,etc.

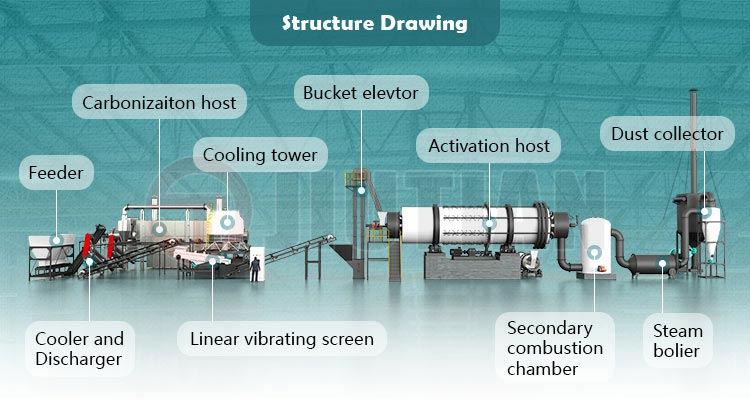

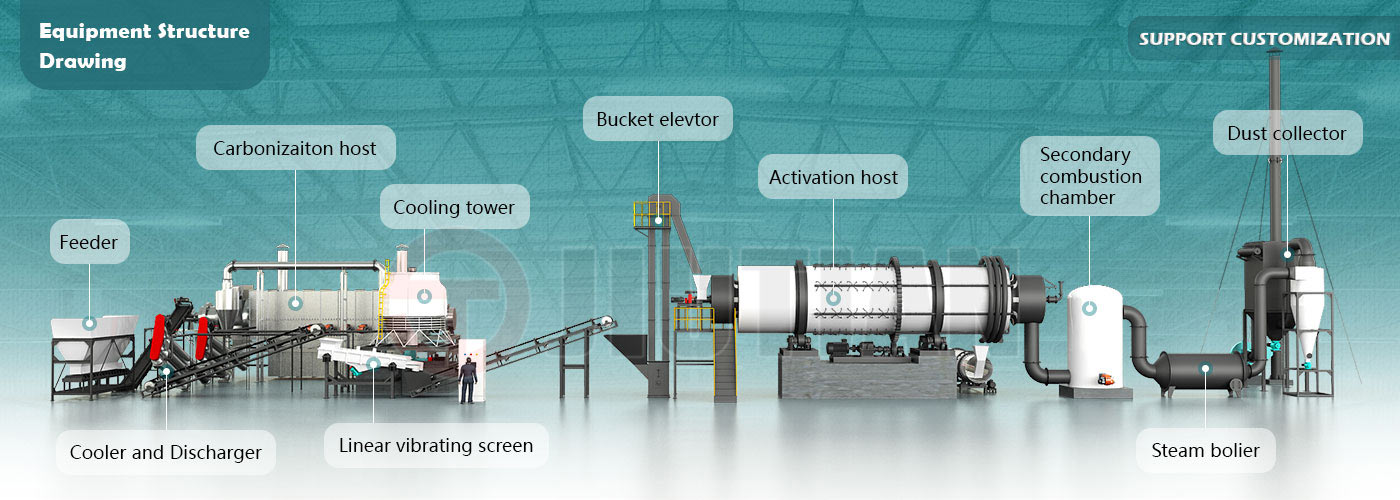

The overall production line reflects the general principles of advanced, efficient, stable, energy-saving, environmentally friendly, safe, frugal and reasonable.The main equipment uses matching drum carbonization machine, drum activation machine and feeding device, conveying device, combustible gas purification device, cooling carbonization device, PLC control system to form the layout of the carbonization activation production line.
Carbonization production line includes silo, conveying equipment, carbonization host, combustible gas purification equipment, dust removal equipment and cooling carbonization equipment.
Activation production line includes screening equipment, conveying equipment, activation host, waste gas treatment and recovery system, dust removal system and PLC control system.
| Model | Output (kg/h) | Drum diameter (m) | Roller length (m) | Overall dimensions (m) | Output ratio (%) |
|---|---|---|---|---|---|
| JTACM-100 | 80-100 | 1.9 | 14 | 15.2*2.2*2.6 | 2.2-2.5：1 |
| JTACM-150 | 120-150 | 2.2 | 15 | 16.3*2.6*3.1 | 2.2-2.5：1 |
| JTACM-200 | 170-200 | 2.5 | 15 | 16.5*3.0*3.5 | 2.1-2.5：1 |
| JTACM-300 | 250-300 | 2.8 | 15 | 16.5*3.4*4.0 | 2.1-2.5：1 |
| JTACM-400 | 320-400 | 3.2 | 15 | 16.6*3.8*4.4 | 2.1-2.5：1 |
| JTACM-500 | 430-540 | 3.6 | 15 | 16.6*4.2*4.8 | 2.1-2.5：1 |

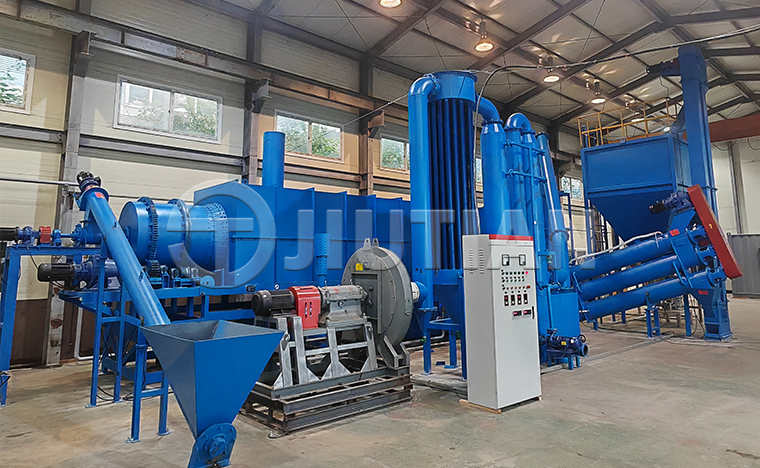

Capacity: 300kg/h
Location: Korea
Configuration: as biochar
Capacity: 2.5 t/h
Location: Russia
Configuration: Recycled Aluminum

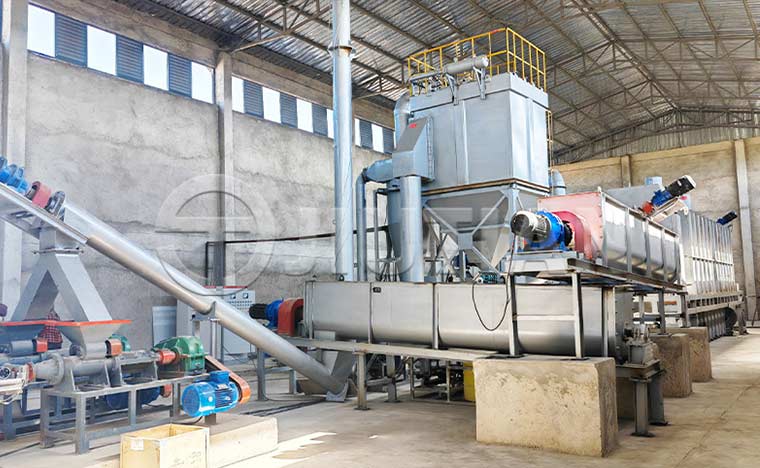

Capacity: 500 kg/h
Location: Ethiopia
Configuration: as BBQ charcoal
According to the customer's actual requirements, raw materials and use of customized solutions
Own production base, strict production standards and processes, professional quality control.
Engineers track the entire service, install and commissioning the equipment to ensure successful operation.
Provide technical support, technical service, technical training, after-sales service.
