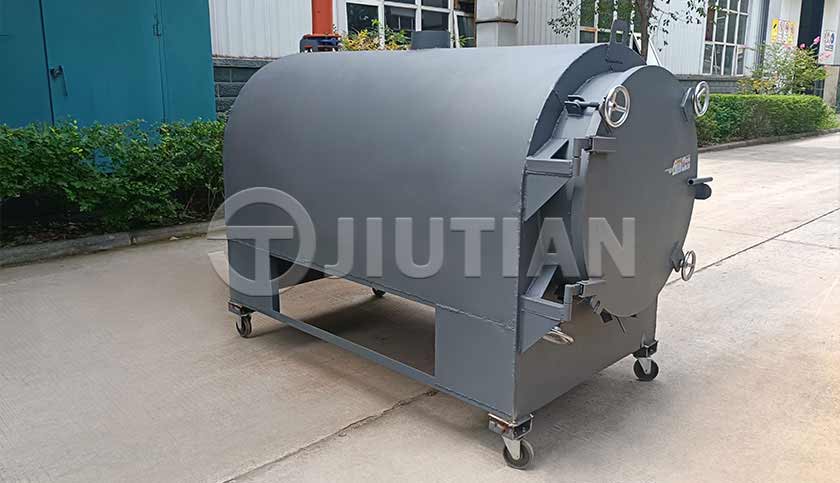

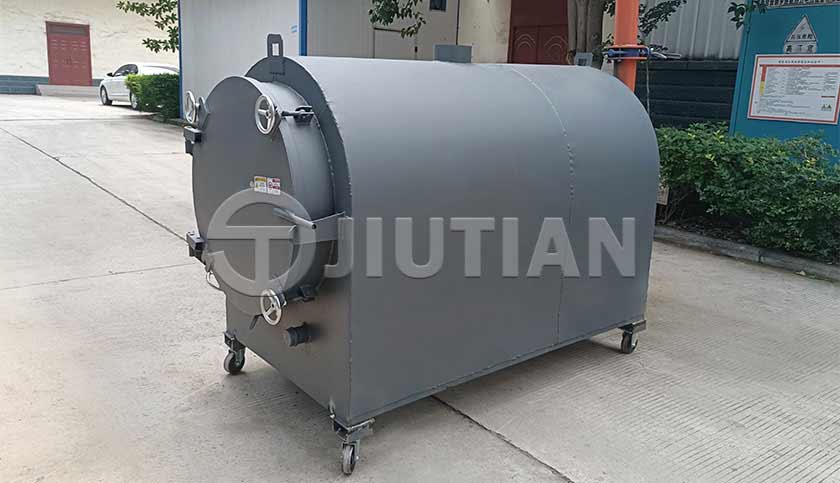

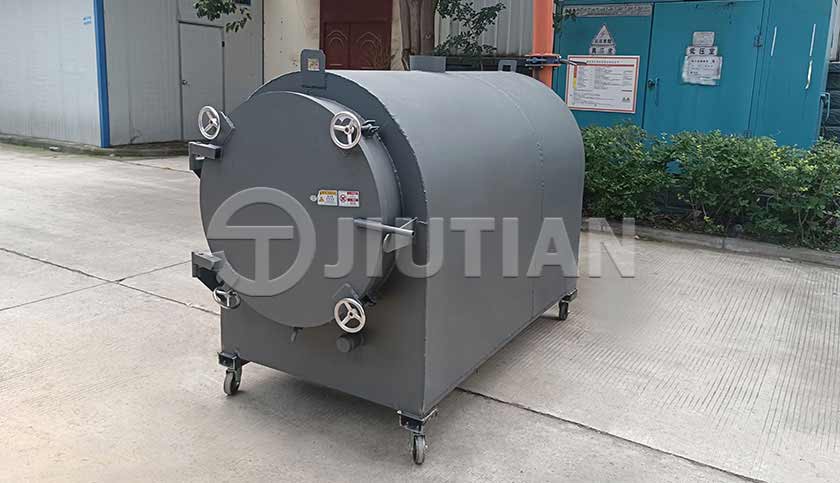

Jiutian Horizontal Biomass Dry Distillation Carbonization Furnace is based on the characteristics of long rod biomass such as logs, wood, sawdust, and jute rods. It adopts horizontal structure, manual charging, cart feeding, and discharging, and advanced hot air dry distillation The carbonization process technology adopts the unique carbonization combustible gas back-burning technology so that the flue gas generated by carbonization can be fully utilized to meet the heat demand of the carbonization furnace itself
It is ideally suited for both bulky, long-rod materials like logs, timber, and jute stalks, as well as finer particulates including sawdust, rice husks, and coconut shells,etc.
Jiutian horizontal biomass carbonization furnace is composed of carbonization inner tank, insulation layer, furnace door, skip, combustible gas backburner pipe, dehumidification buffer tank, burner, exhaust pipe and thermometer. It can be equipped with pre-burning gasification Furnaces, flue gas purification devices, etc. The furnace uses the principle of anaerobic carbonization to remove volatile matter from biomass to achieve biomass carbonization. The carbonization process is completed in four steps: charging and sealing the furnace - preheating and drying - oxygen-free carbonization - cooling to produce charcoal. Furnace charging and sealing is to stack the biomass raw materials to be carbonized into a skip, push them into the carbonization furnace, seal the lid, and lock the furnace door; preheating and drying is to heat the furnace with fuel such as wood, and slowly heat it from normal temperature to 220°C -250℃, the process time is 1.2-2.0 hours, and the moisture in the material and the air in the inner tank are discharged; anaerobic carbonization is when the temperature in the furnace is heated until faint yellow smoke begins to be discharged from the smoke pipe, that is, carbonization begins, and the combustible gas is recovered and enters the furnace for ignition. , adjust the air intake, and keep the temperature in the inner tank at 300-450°C for 2.0-3.5 hours. When the furnace naturally turns off, the carbonization is completed. To cool the charcoal, open the cooling water valve to cool the inner tank. When the temperature drops below 50°C, open the lid and release the charcoal.
| Model |
Capacity(m³)/ Carbonization time |
Length(m) | Width(m) | Internal Diameter(m) | Internal Length(m) | Material |
|---|---|---|---|---|---|---|
| JTWT1600 | 7.08/9h | 2.9 | 2.2 | 2.5 | 1.9 | Carbon steel |
| JTWT2000 | 9.92/10h | 3.9 | 2.2 | 3.5 | 1.9 | |
| JTWT3100 | 15.30/12h | 5.9 | 2.2 | 5.4 | 1.9 |
Capacity: 300kg/h
Location: Korea
Configuration: as biochar
Capacity: 2.5 t/h
Location: Russia
Configuration: Recycled Aluminum
Capacity: 500 kg/h
Location: Ethiopia
Configuration: as BBQ charcoal
According to the customer's actual requirements, raw materials and use of customized solutions
Own production base, strict production standards and processes, professional quality control.
Engineers track the entire service, install and commissioning the equipment to ensure successful operation.
Provide technical support, technical service, technical training, after-sales service.
