Environmentally friendly drum continuous carbonation machine, the use of carbonized flue gas purification into combustible gas generated in combustion itself, recycling to use, it can 24 hours of continuous production, has zero pollution, zero-emission, save labor, high capacity, energy-saving consumption, the advantages of a high degree of automation, advanced technology.
This machine is suitable for all kinds of powder particles biomass carbonization forestry agriculture. Such as sawdust, wood chip, bagasse, coffee grounds, bamboo, coconut shell, cherry shell, jujube, walnut shell, apricot shell shell shell, peanut shell, rice husk, cotton stalk, straw, etc.
This machine is suitable for all kinds of powder particles biomass , forestry biomass, agriculture, etc.. Such as sawdust, wood chip, bagasse, coffee grounds, bamboo, coconut shell, cherry seeds, jujube, walnut shell, apricot shell, peanut shell, rice husk, cotton stalk, straw, etc.

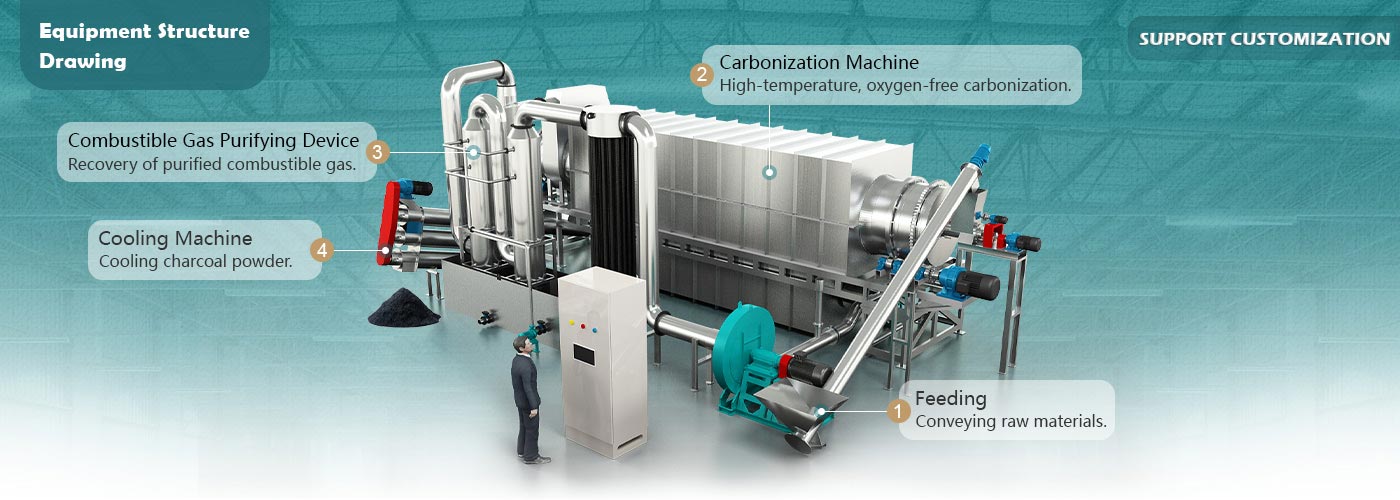

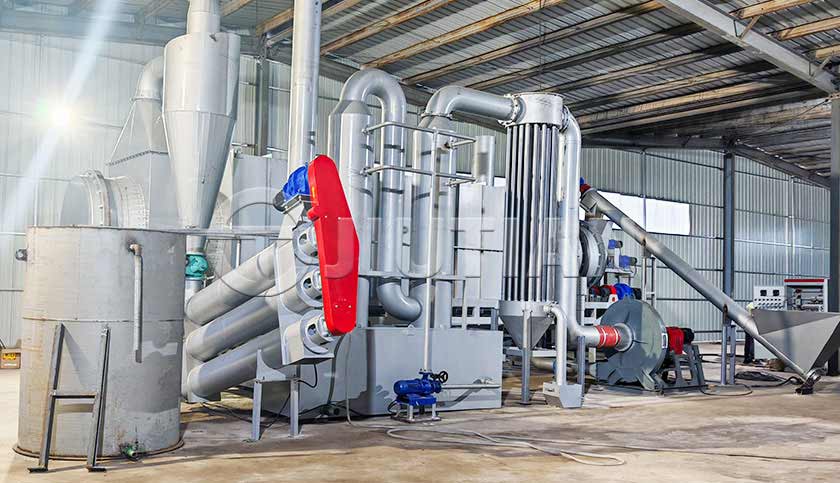

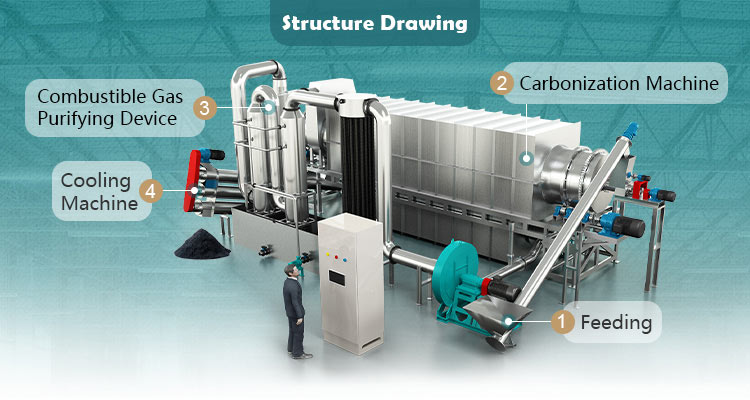

First ignited the biomass in the gasifier, the flue gas produced by burning after spraying, cooling, purification process, the combustible gas into pure (carbon monoxide, methane, ethane, etc.), as the early stage of the carbonization of heat source, to early warming carbonizer, began after feeding coking reach the set temperature.carbonation process of flue gas by spraying, cooling, purification process, make the secondary on the combustible gas generated during the combustion.According to such methods of circulation, the use of autologous flue gas combustion self,in order to achieve the effect of energy saving.And the process of flue gas after purification treatment, production environment without flue gas emissions, environmental protection, and reached to the standards for waste gas emptying.
| Model | Diameter(mm) | The drum length(m) | Carbon capacity(kg/h) | Drum speed(rpm) | Dimension(m) |
| JTTJ1010 | 1000 | 10 | 100-200 | 1.5-2.5 | 10.0*1.7*2.8 |
| JTTJ1210 | 1200 | 10 | 200-300 | 1.5-2.5 | 10.0*2.0*3.0 |
| JTTJ1410 | 1400 | 10 | 400-500 | 1.5-2.5 | 10.0*2.2*3.2 |
| JTTJ1612 | 1600 | 12 | 600-800 | 2.0-3.0 | 10.0*2.4*3.5 |
| JTTJ1912 | 1900 | 12 | 900-1100 | 2.0-3.0 | 12.0*2.8*3.8 |
| JTTJ2212 | 2200 | 12 | 1200-1500 | 2.0-3.0 | 12.0*3.2*4.2 |
| JTTJ2512 | 2500 | 12 | 1600-2000 | 2.0-3.0 | 12.0*3.5*4.5 |
| JTTJ3012 | 3000 | 12 | 2200-2600 | 2.0-3.0 | 12.0*4.0*5.0 |
| JTTJ3612 | 3600 | 12 | 3000-3800 | 2.0-3.0 | 12.0*4.6*5.6 |
Capacity: 300kg/h
Location: Korea
Configuration: as biochar
Capacity: 2.5 t/h
Location: Russia
Configuration: Recycled Aluminum
Capacity: 500 kg/h
Location: Ethiopia
Configuration: as BBQ charcoal
According to the customer's actual requirements, raw materials and use of customized solutions
Own production base, strict production standards and processes, professional quality control.
Engineers track the entire service, install and commissioning the equipment to ensure successful operation.
Provide technical support, technical service, technical training, after-sales service.
