The continuous rice husk carbonization machine carbonizes the rice husk in the absence of oxygen, and the integrity of the rice husk is 100%. The rice husk carbonization machine can also be used for carbonization of straw, wheat stalk, hemp stalk, bagasse and other materials.
The rice husk carbonization machine reasonably adopts the advanced technology of recycling, purifying, and circulating combustion of combustible gases such as carbon monoxide, methane, and oxygen produced during the carbonization process of materials. That is to say, it solves the problem of environmental pollution caused by the thick smoke produced by ordinary carbonization machines in the carbonization project, and also solves the problem of heat energy required by the equipment, fully achieves self-sufficiency, improves the continuity and economy of equipment, and makes full use of agricultural and forestry surpluses. To turn waste into treasure, steel mills use a lot of rice husk charcoal.
This equipment is suitable for carbonization of fine powders such as sawdust, rice husk, bark, sludge, garbage,coconut shell, cherry shell, jujube, walnut shell, apricot shell, peanut shell, etc.The advanced carbonization technology means that the whole process does not produce harmful gases and does not pollute the environment.

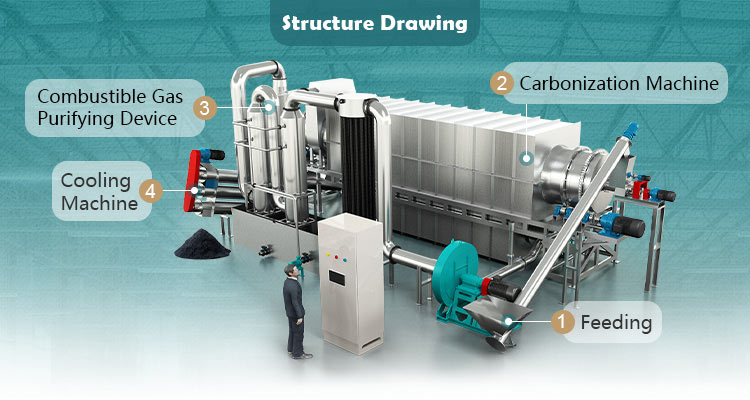

First ignited the biomass in the gasifier, the flue gas produced by burning after spraying, cooling, purification process, the combustible gas into pure (carbon monoxide, methane, ethane, etc.), as the early stage of the carbonization of heat source, to early warming carbonizer, began after feeding coking reach the set temperature.carbonation process of flue gas by spraying, cooling, purification process, make the secondary on the combustible gas generated during the combustion.According to such methods of circulation, the use of autologous flue gas combustion self,in order to achieve the effect of energy saving.And the process of flue gas after purification treatment, production environment without flue gas emissions, environmental protection, and reached to the standards for waste gas emptying.
| Model | Diameter(mm) | The drum length(m) | Carbon capacity(kg/h) | Drum speed(rpm) | Dimension(m) |
| JTTJ1010 | 1000 | 10 | 100-200 | 1.5-2.5 | 10.0*1.7*2.8 |
| JTTJ1210 | 1200 | 10 | 200-300 | 1.5-2.5 | 10.0*2.0*3.0 |
| JTTJ1410 | 1400 | 10 | 400-500 | 1.5-2.5 | 10.0*2.2*3.2 |
| JTTJ1612 | 1600 | 12 | 600-800 | 2.0-3.0 | 10.0*2.4*3.5 |
| JTTJ1912 | 1900 | 12 | 900-1100 | 2.0-3.0 | 12.0*2.8*3.8 |
| JTTJ2212 | 2200 | 12 | 1200-1500 | 2.0-3.0 | 12.0*3.2*4.2 |
| JTTJ2512 | 2500 | 12 | 1600-2000 | 2.0-3.0 | 12.0*3.5*4.5 |
| JTTJ3012 | 3000 | 12 | 2200-2600 | 2.0-3.0 | 12.0*4.0*5.0 |
| JTTJ3612 | 3600 | 12 | 3000-3800 | 2.0-3.0 | 12.0*4.6*5.6 |
Capacity: 300kg/h
Location: Korea
Configuration: as biochar
Capacity: 2.5 t/h
Location: Russia
Configuration: Recycled Aluminum
Capacity: 500 kg/h
Location: Ethiopia
Configuration: as BBQ charcoal
According to the customer's actual requirements, raw materials and use of customized solutions
Own production base, strict production standards and processes, professional quality control.
Engineers track the entire service, install and commissioning the equipment to ensure successful operation.
Provide technical support, technical service, technical training, after-sales service.
